Hangzhou Huaxiang Coating Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | HUAXIANG |
| Price : | $385.00/pieces 1-9 pieces |

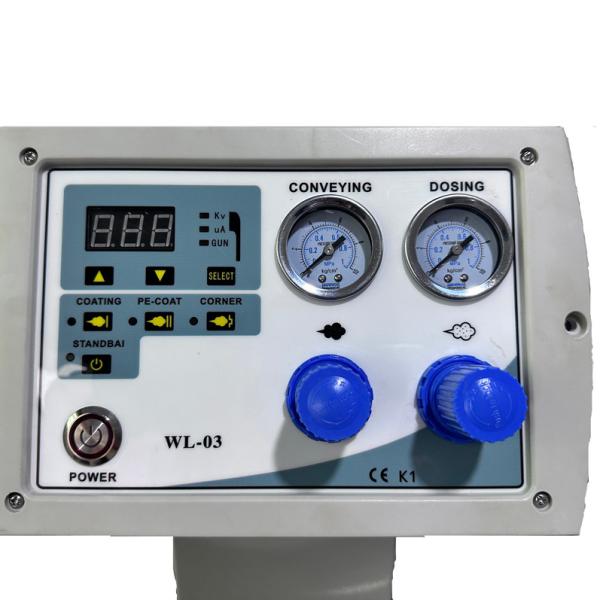

HXC control panel of an electrostatic powder coating machine is a
critical component that allows operators to manage and optimize the
coating process. Here are the main features and functions typically
found on such control panels:
Key Features
Digital Display: A clear digital display shows important
information such as voltage, powder flow rate, and air pressure,
allowing for precise monitoring.
Adjustable Settings: Operators can easily adjust settings for:
Voltage: Controls the electrostatic charge to enhance powder
adhesion.
Powder Flow Rate: Regulates the amount of powder being applied.
Air Pressure: Adjusts the spray pattern and atomization of the
powder.
Mode Selection: Many panels offer different operating modes, such
as manual, automatic, or specific presets for various materials.
Safety Features: Includes emergency stop buttons and alarms to
ensure safe operation, preventing accidents during the coating
process.
User-Friendly Interface: Intuitive controls and layout make it easy
for operators to navigate and adjust settings quickly.
No | Item | Data |
1 | Voltage | 110v/220v |
2 | Frenquency | 50/60HZ |
3 | Input power | 50W |
4 | Max. output current | 200ua |
5 | Output power voltage | 0-100kv |
6 | Input Air pressure | 0.3-0.6Mpa |
7 | Polarity | Negative |
8 | Gun weight | 480g |
|
|
