Hangzhou Huaxiang Coating Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | huaxiang |
| Price : | $500.00/pieces 1-10 pieces |
1.we had manufacturued and sold it for more than 20 years, Because of its economic price and good quality with low repairing ratio. It is wil usually used globally and becomes more and more popular by our both domestic and abrod customers;
2.This electrostatic powder coating machine is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". Applying the electrostatic powder coating to objects is to give negative electric charge to the powder, which is then sprayed towards your workpiece by high voltage electrostatic and then the power will be attracted onto the workpiece.
3.We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.
Voltage | 100~240VAC |
Frenquency | 50/60HZ |
power | 50W |
Safety Level | IP54 |
Ambient Temperature | 0-40°C |
Input Air pressure | 0.55MPa(5.5bar,80PSI) |
Maximum powder injection | 600g/min |
Gun weight | 480g |
Maximum Output Voltage | 120kv |
Maximum Output Current | 120µA |
The length of Powder Tube | 3.5meters |
Accessories included in the machine | Quantity |
Gun | 1 SET |

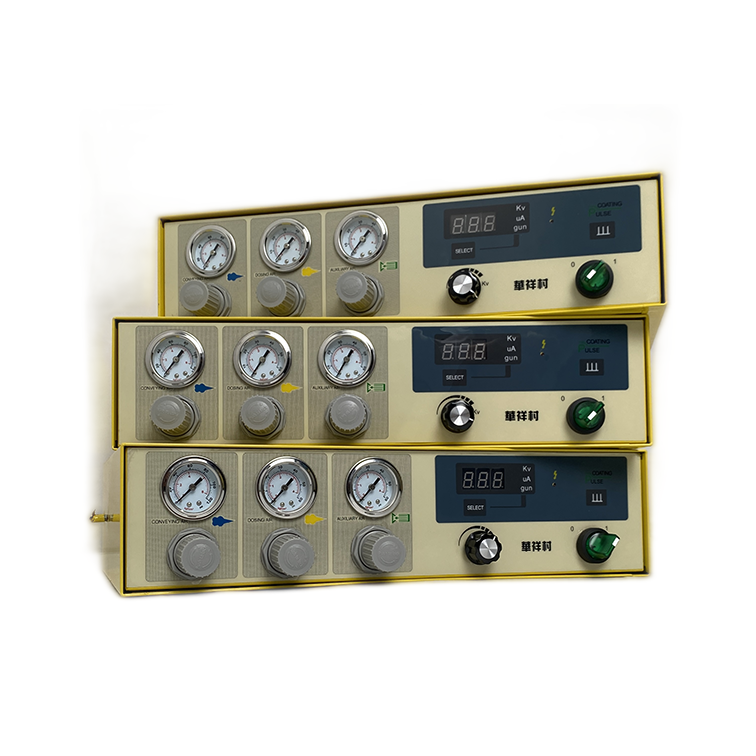

Controller | 1 SET |
Low Temperature Soft Powder Pipe | 1 SET /3.5Meters |
Vertical Powder Pump | 1 SET |
Stainless Steel Barrel | 1 SET /40L-45L |
Overflow Pipe | 1 SET |
Movable Trolley | 1 SET |
Oil and Water Separator | 1 SET |
Consumables | Some |
Net weight of machine | 40KG |
package Size ,Weight | 500mm(L)*500mm(W)*1020mm(H), 45-50KG |
|
|
